In-Vehicle Networks
Last Meter Connect, In-vehicle Network Stacks
tQCS is a sole solution and service partner for Excelfore IVN in Asia-pacific region
including China, Korea, Japan and Vietnam.
Demonstration of Key Technologies
Time-Seitive Network (TSN) Protocols in a
Mixed Platform / Mixed OS Network Environment
November 2020
WHAT WE PROVIDE
Products
The Excelfore eAVB/TSN solution comprises of a Talker, a Listener, or both to form an end-to-end solution. Excelfore provides a variety of other embedded software for in-vehicle networking and diagnostics. Excelfore network stacks are deployed in multiple OEM and Tier-1 programs in a variety of products including ADAS cameras, Instrument Clusters, Domain controllers, Ethernet Gateways and ECUs
Ethernet AVB/TSN Talker
Ethernet AVB/TSN Listener
Ethernet AVB/TSN Listener and Talker
CAN to Ethernet Bridging
Flexray to Ethernet Bridging
LIN to Ethernet Bridging
Managed Switch Software
DoIP
SOME/IP
UDS
Services
Excelfore provides expert consulting services to help electric vehicle start-ups and established OEM automakers define their next generation invehicle network architectures.
Excelfore provides engineering support and consulting services to help ensure successful system level integration of the in-vehicle network. Assistance in obtaining AVnu certification can include pre-certification testing and validation.
AVB/TSN Testing Tools
| Tool | Key Features | Supported Protocols / Interfaces |
|---|---|---|
| Tool-1: AVB/TSN System Test Tool |
|
AVB (TCP/IP), TSN |
| Tool-2: AVB/TSN AccuMedia Tester |
|
AVB (TCP/IP), TSN |
| Tool-3: Zonal Controller Tester |
|
TSN |
| Tool-4: TSN Advanced Tool |
|
TSN |
- System Test Tool
- AVB Ethernet for Amps & Tuners
- Test Generator - Media Converter for Automotive Ethernet (10/100/1000Base-T)
- System Test Tool
- AVB Ethernet for Amps & Tuners
- Test Generator
- Low-cost Clock Measurement Device
- Standalone Audio/Video Playback
- High-fidelity audio with DSP
- Media Converter for Automotive Ethernet (10/100/1000Base-T)
- Zonal Controller Test Harness for CAN, CAN-FD - Automotive Ethernet (1Gb, 100Mb, 10Mb)
- Advanced Test Tool
- Dynamic Configuration using YANG & NetConf
Excelfore has established itself as a leading provider of AVB/TSN software solutions, including clock synchronization and networking architectures. Over the past decade, the company has successfully delivered more than two dozen projects to major OEMs. In building these production-ready software stacks, Excelfore also created a wide range of supporting tools—such as advanced test frameworks and traffic pattern injectors—to strengthen its development and quality assurance processes. Excelfore is recognized as one of only four globally authorized test and certification laboratories under the Avnu standards organization.
Excelfore offers a robust portfolio of AVB/TSN test tools for validating next-generation in-vehicle networks. The 1) Media Test Tool enables TSN streaming and full command/control of devices under test. The 2) AccuMedia Test Tool, built on AM62D SoC and CDCE6214-Q1, delivers ultra-precise AVB/TSN audio-media clock synchronization. For zonal architectures, the 3) Harness for Zonal Controllers supports CAN, CAN-FD, and automotive Ethernet (1G/100Mb/10Mb), providing a comprehensive environment for controller validation.
WHAT WE USE
Technologies

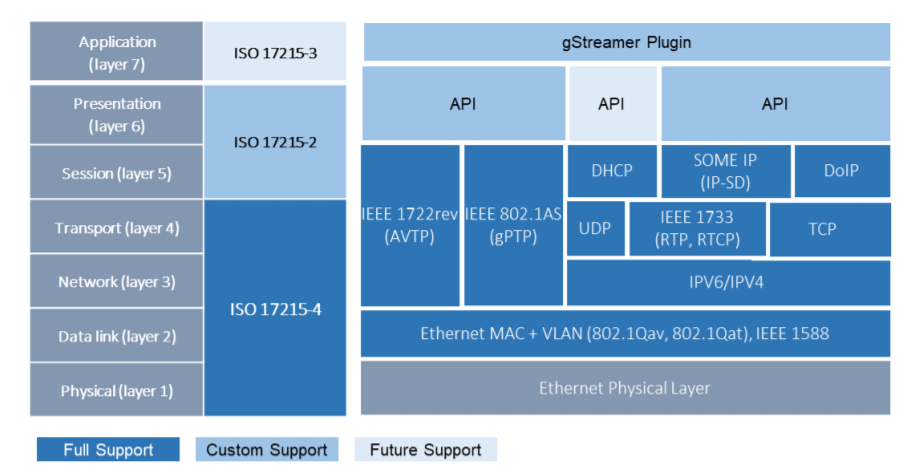

The IEEE standards and technologies supported in the different Excelfore Network Products are listed below.
Ethernet AVB/TSN Protocols
IEEE 1722rev (layer 2) or 1733 (layer 3)
IEEE 802.1AS/IEEE1588
IEEE 802.1ASrev
IEEE 802.1Qav
IEEE 8021.Qat
IEEE 802.1Qbv
IEEE 802.1Qbu
IEEE 802.1Qci (Switch support)
VLAN, SRP, MAAP
WHAT WE SUPPORT
Platforms
Excelfore embedded in-vehicle networking software is available for a wide variety of operating systems ranging from full high-level OS’s such as Android, Linux and QNX to automotive-specific environments and RTOS’s.
All popular automotive processor and microcontroller families are supported.
